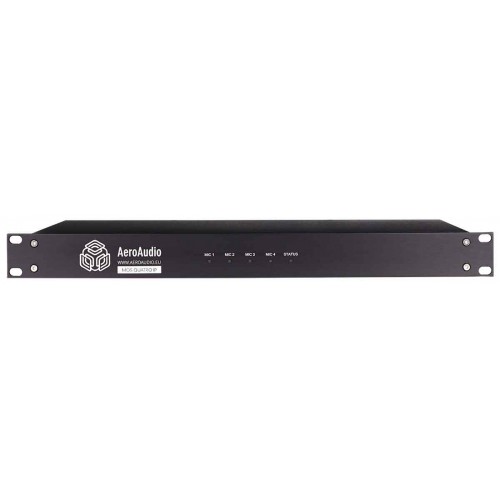

•  4X LED INDICATOR
•  4X MIC OUT (TO STUDIO)
•  4X MIC ON-AIR ARM
•  GPI STUDIO
•  THERE ARE 4 METHODS TO WORK WITH MOS QUATRO IP:
    TCP COMMANDS / STRINGS
    TELOS AXIA X-NODE / LIVEWIRE DRIVER
    TELOS AXIA QOR/IQ/IQX
    DHD LOGIC

•  12VDC POWER INPUT


Suitable for signalling 4 on-air lamps for microphones. e.g. YELLOWTEC MIKA ON-AIR MIC ARM.

There are 4 methods to work with MOS Quatro IP:
 - TCP COMMANDS / STRINGS
 - TELOS AXIA X-NODE / LIVEWIRE DRIVER
 - TELOS AXIA QOR/IQ/IQX
 - DHD LOGIC

ON-AIR: red
OFF-AIR: white

STATUS LED INDICATOR
The LED will light up when the 12VDC power supply is present.

12VDC POWER INPUT
Ratings: 12VDC (9~18 volt) at 250mA. The polarity is not important
Power supply is included, options: 115V/USA - 230V/AUS - 230V/EUR - 230V/UK

4x MIC OUT (TO STUDIO)
Microphone output; connect to your equipment with standard MIC cable
(XLR 3pin)
 - PIN1: Ground (Shield)
 - PIN2: Positive (Red)
 - PIN3: Negative (Blue)

4x MIC ONAIR ARM
Connect to the MIC ON-AIR ARM with standard MIC cable (XLR 5pin)
 - PIN1: Ground (Shield)
 - PIN2: Positive (Red)
 - PIN3: Negative (Blue)
 - PIN4: LED (Yellow)

- PIN5: LED (Black)
